Portal AirNodes are high-capacity wireless devices that provide strong, wide-area LTE coverage. They’re great for connecting everything from remote villages to busy city neighborhoods.
They work using CBRS (Band 48), a special wireless band approved for fast, reliable data. Each Portal AirNode is installed in an elevated spot (like a rooftop or tower) to get the best signal reach.
To run a Portal, you need:
- A Host, who offers a powered and connected location.
- An Operator, who manages the device remotely using the World Mobile dashboard.
- Or a Host-Operator who combines both roles.
It’s a flexible and very scalable setup designed to bring connectivity to more people in more places.
When units are in stock, you can buy Portals directly through the Club Store.
2 Models

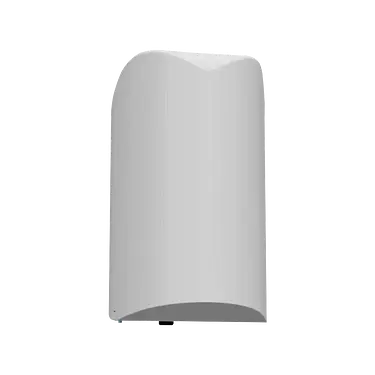

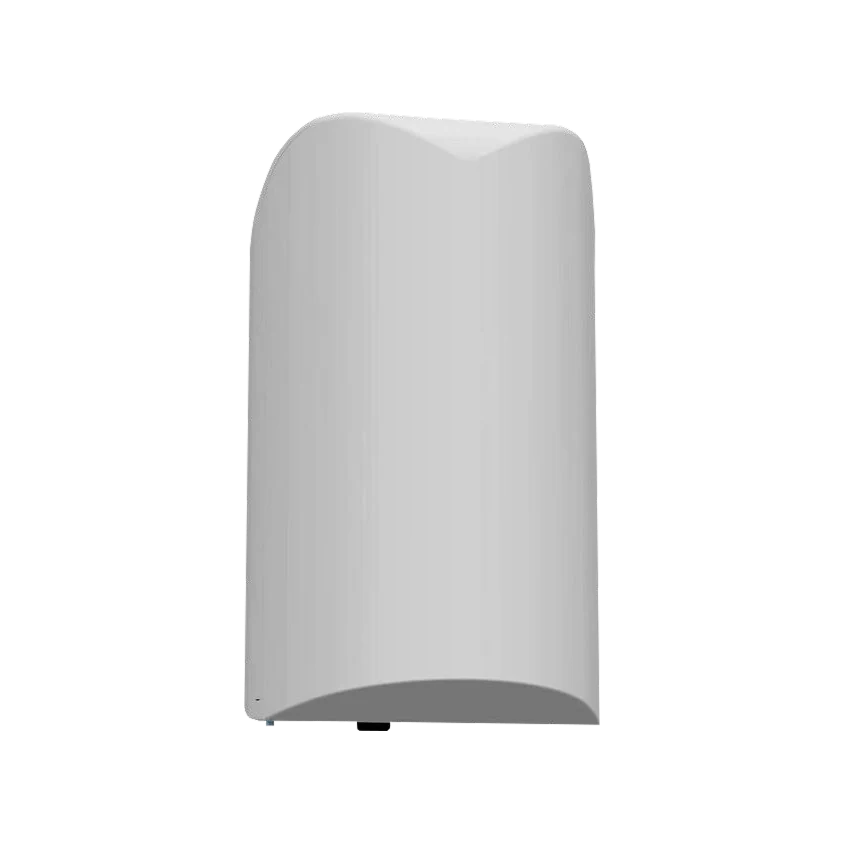

Portal 180
The Portal 180 AirNode is a powerful device that sends out LTE signal in a 180° wide area. It’s great for covering neighborhoods, business parks, or large properties. It connects directly to the World Mobile network using CBRS spectrum and supports common mobile internet setups.
- Handles up to 288 connected devices at once
- Download speeds up to 110 Mbps
- Upload speeds up to 33 Mbps
Portal 360
The Portal 360 is built by combining two Portal 180 units to cover a full 360° area. It’s ideal for large, busy spaces like campuses, downtown areas, or industrial zones where lots of people or devices need to stay connected at the same time.
- Handles up to 576 connected devices
- Double the capacity of a Portal 180
Key Features Explained
- All-in-One design: Built into one unit: antenna, radio, and control system.
- CBRS Category B certified: Meets the official requirements to operate in the US on the special CBRS wireless band.
- Supports LTE TDD configurations: Works with common mobile data setups used around the world.
- Flexible bandwidth: 10 or 20 MHz: Can handle different data needs depending on how busy your area is.
- Downlink carrier aggregation (up to 3CC): Combines up to 3 channels so users can get faster internet speeds.
- 180° or 360° coverage options: You can choose between half-circle or full-circle coverage, depending on what area to connect.
- Standard 2x2 MIMO per sector: Uses two antennas to send and receive data, which improves reliability and speed.
- Supports IPv6 and Fixed Wireless Access: Ready for the latest internet systems and great for home or business use.
Setup
Portal AirNodes are professionally installed and require stable power and internet at the Host location. They’re mounted securely to walls, poles, or towers using commercial-grade fixtures. Once deployed, Operators can monitor and manage them remotely.
Earning Potential
Lifetime Earning Potential for the Portal 180
That depends on how many people connect to your Portal and how much data they use. Here are some simple estimates based on different subscriber levels over a 14+ year period:
- $40,320 - with 20 subscribers earning about $240/month
- $120,960 - with 60 subscribers earning about $720/month
- $252,000 - with 125 subscribers earning about $1,500/month
- $504,000 - with 200 subscribers earning about $3,000/month
When does it pay for itself?
This is how long it could take to earn back what you paid for the Portal 180:
- Just over 3 years - with 20 subscribers
- Around 13 months - with 60 subscribers
- Just over 6 months - with 125 subscribers
- As fast as 3.2 months - with 200 subscribers
What’s the return over its lifetime?
Here’s what your return on investment could look like over 14+ years, based on how many subscribers connect to your Portal 180:
- 321% – with 20 subscribers (a decent long-term return)
- 1,166% – with 60 subscribers (a strong payoff)
- 2,537% – with 125 subscribers (excellent return)
- 5,172% – with 200 subscribers (huge ROI)
Technical Specifications
| Feature | Description |
|---|---|
| Frequency Band | 3.55-3.70 GHz (LTE Band 48 CBRS) |
| Channel Bandwidth | 10 or 20 MHz |
| MIMO Configuration | 2TX x 2RX per sector - Delivers reliable performance across all users. |
| UE Capacity | Up to 288 devices per Portal 180 |
| Downlink Throughput | Up to 110 Mbps |
| Uplink Throughput | Up to 33 Mbps per unit |
| Power Consumption | Max 180 W |
| Connectivity | 1 x Copper 1000BaseT |
| Weight | 28.7 lbs (13.0 kg) |
| Ingress Protection | IP56 - Protected against dust and strong water spray. |
| Dimensions | 22.4" x 13.78" x 8.9" (570 x 350 x 227 mm) |
Portal Maintenance
Consistent maintenance ensures your device delivers reliable service and maximizes uptime. Here’s what’s involved:
- Monitoring Performance (Operator): Use the World Mobile dashboard to keep tabs on uptime, user activity, and overall performance.
- Ensuring Stable Power Supply (Host): Make sure the AirNode has uninterrupted power.
- Maintaining Secure Installation (Host): Confirm that the device is properly installed and protected from weather or tampering.
- Providing Maintenance Access (Host): Be ready to allow access for updates or physical servicing when needed.
- Updating Software and Firmware (Host): Keep the device up to date with any updates from World Mobile.
Where to Buy
Buy Portal 180 AirNode ← Click to view the Portal 180 product page
Buy Portal 360 AirNode ← Click to view the Apex 360 product page
Accepted Payment Methods
- PayPal
- Credit or Debit Card
- USDC, ETH & more via Coinbase Pay
- SOL, USDC, ETH & more via Solana Pay
i will be sure to keep an eye out in future drops.
! Once HD1 is rolled out, we believe we will start seeing a lot more variety in the nodes offered!
